That Open Viewer

These are my notes for the exploration and modification of the That Open Viewer (version od July 2024).

History

Started as IFC.js

IFC.js is a library that converts any browser into an IFC viewer. It was created by Antonio González Viegas.

IFC.js parses IFC entities to WebGL geometry through THREE.js

The IFC.js library is now deprecated / not maintained.

The project changed to That Open and the tools have been redeveloped with Web Components

Access and doc of That Open

Technology stack

Typescript, TSDoc, Lit Framework : Vite / Vanilla

  • Builders : Vite, others: Snowpack, EsBuild
  • Framework: Vanilla, others: Angular, React, Vue
  • WC: Lit, others: Polymer, Stencil, Fast, Vaadin
  • Language: TypeScript, others: JavaScript
  • Test: Jest

Environment - July 2024

Setup

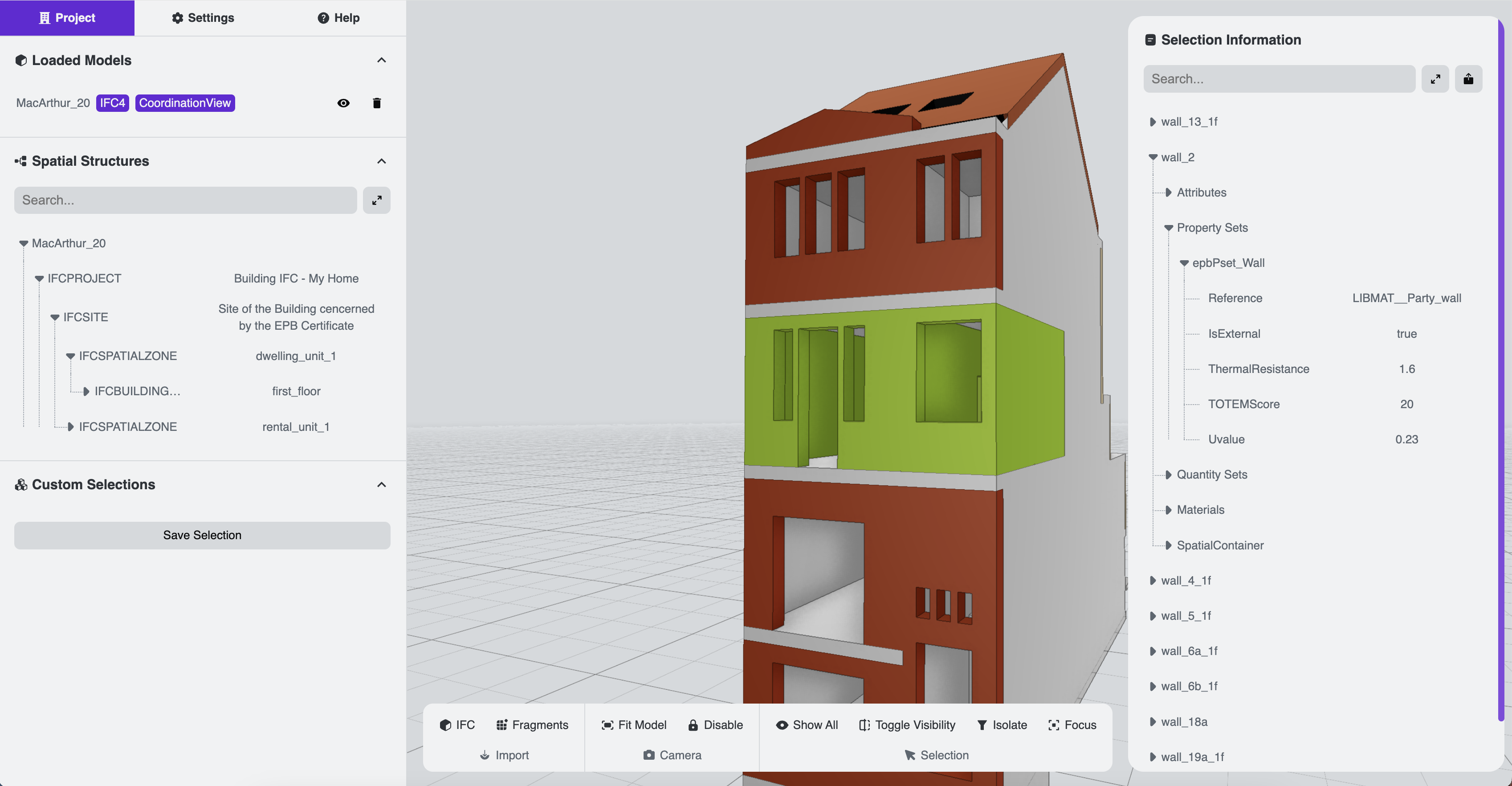

ThatOpen - Base screen

Project located in:

  • X_NODE_APP/thatopen/that-open-v2.1.0

Based on guideline in https://github.com/ThatOpen/engine_templates

-> create a project folder
-> in the folder, open a terminal and execute: npm create bim-app@latest
? Choose a template for your new BIM app: vanilla

Project created successfully! Now execute the following in terminal:
/* If using NPM */
npm i
npm run dev
/* If using Yarn */
yarn install
yarn dev

MUST Have:
npm i stats.js (not all the others!)

Not sure if still needed:
npm i @types/three

The application is structured with an index.html which contains a component <bim-grid> to host the UI

  <bim-grid id="app"></bim-grid>
  <script type="module" src="/src/main.ts"></script>

The code is in main.ts with a reference to the bim-grid

const app = document.getElementById("app") as BUI.Grid;

Changes to use the tutorials

To put the experiments (from the ThatOpen tutorials) in the same set, I have modified the index.html to be able to use alternative scripts, e.g., main-ifc-loader.ts to experiment with the IfcLoader. The tutos all use a <div id="container"> to host the UI. I have add that div to the index.html.

<div id="container"></div>
<bim-grid id="app"></bim-grid>
<script id="mainscript" type="module"></script>

A script sets the src attribute of mainscript to the selected main-... source. Within the template sources, the following sets the UI so that app has a zero height and container gets enough space.

const app = document.getElementById("app")!;
container.setAttribute('style','width: 100vw; height: 80vh; position: relative;')
app.setAttribute('style','width: 100vw; height: 0vh; position: relative;')

Upload the IFC without a User action

I need to be able to upload the model without using the UI. This is done in main-axo.ts. In that case the import section of the toolbar is removed. See ThatOpen - Base screen with auto upload

Create a number of file with some of the tutorials

src/tutorials/main-ifc-loader.ts

  • reads /data/MacArthur_20.ifc
  • writes downloads/MacArthur_20.frag moved to /data/MacArthur_20.frag (fragments)
  • writes downloads/MacArthur_20.json moved to /data/MacArthur_20.json (properties)

src/tutorials/main-ifc-json-exporter.ts

  • reads /data/MacArthur_20.frag (to show)
  • reads /data/MacArthur_20.ifc
  • writes downloads/properties.json moved to /data/properties.json (properties) (same size as the + export from main-ifc-loader)

src/tutorials/main-ifc-relations-indexer.ts

  • reads /data/MacArthur_20.ifc
  • writes downloads/relations-index-all.json moved to /data/relations-index-all.json
  • reads /data/relations-index-all.json

More on the JSON (properties)

The IfcJsonExporter, used in main-ifc-json-exporter.ts produces a JSON out of the Ifc file. In that JSON the IFC class is replaced by a numerical ID. The correspondence is defined in the file ifc-schema.d.ts located in that-open-2/node_modules/web-ifc/ifc-schema.d.ts. For instance, the file contains export declare const IFCSPATIALZONE = 463610769; In the JSON, the IFCSPATIALZONE type is replaced by 463610769, as in

    "4011": {
        "expressID": 4011,
        "type": 463610769,
        "GlobalId": {
            "value": "2bgVD2zFGHxgaO_aUMs4qX",
            "type": 1,
            "name": "IFCGLOBALLYUNIQUEID"
        },
        "OwnerHistory": {
            "value": 5,
            "type": 5
        },
        "Name": {
            "value": "dwelling_unit_1",
            "type": 1,
            "name": "IFCLABEL"
        },
        "Description": {
            "value": "Dwelling of the first floor",
            "type": 1,
            "name": "IFCTEXT"
        },

Use the classifier

The Classifier, used in main-ifc-classifier.ts enables to get all elements of specific(s) types. The classifier returns a collection of fragments. The classifier code is in @thatopen/components/dist/fragments/Classifier/index.d.ts It works on the map FRAGS.FragmentIdMap

It is then possible to make an operation on these fragments, such a changing the color.

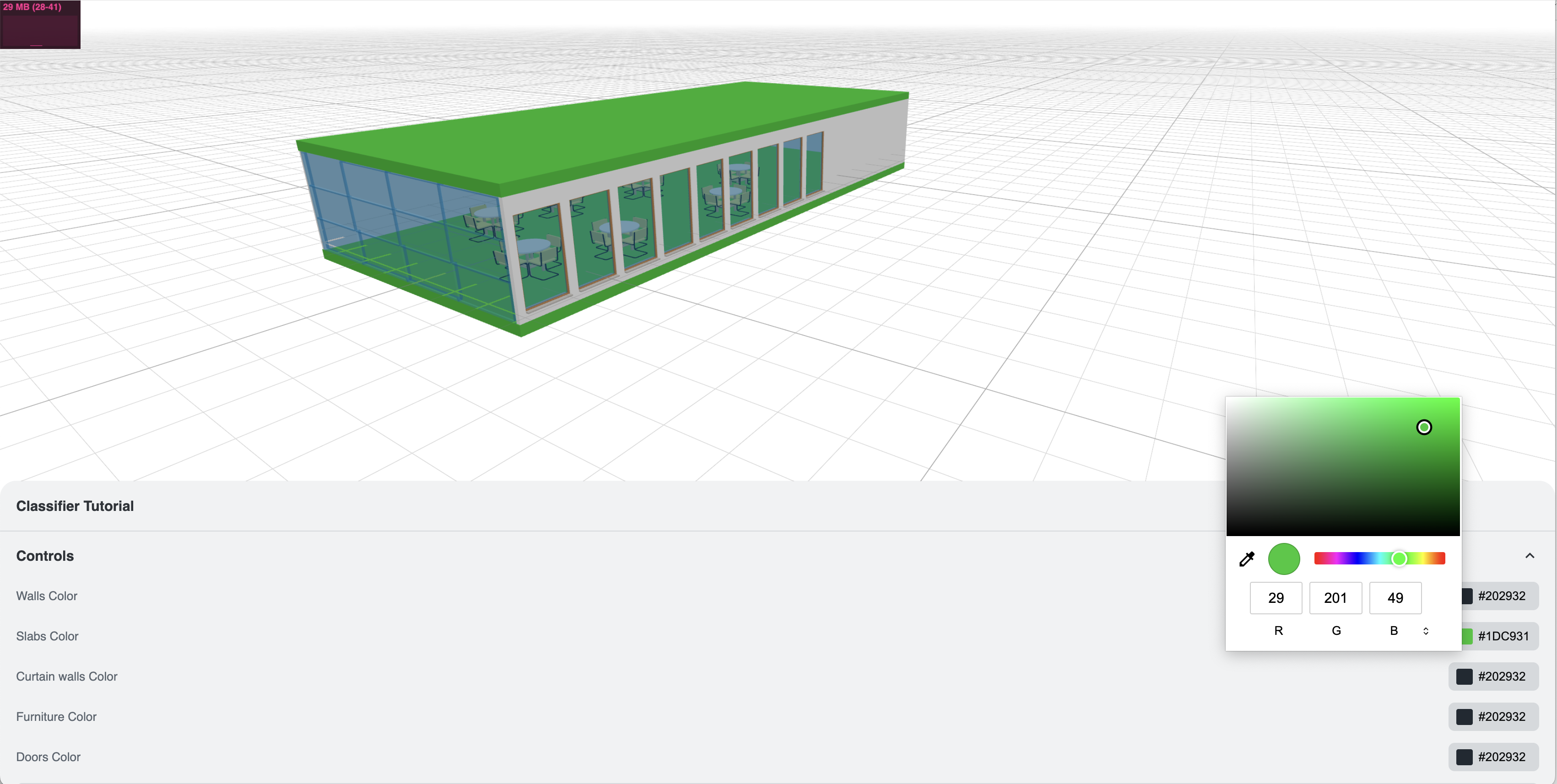

Change the color of a group with the provided UI Change the color of a group with the provided UI

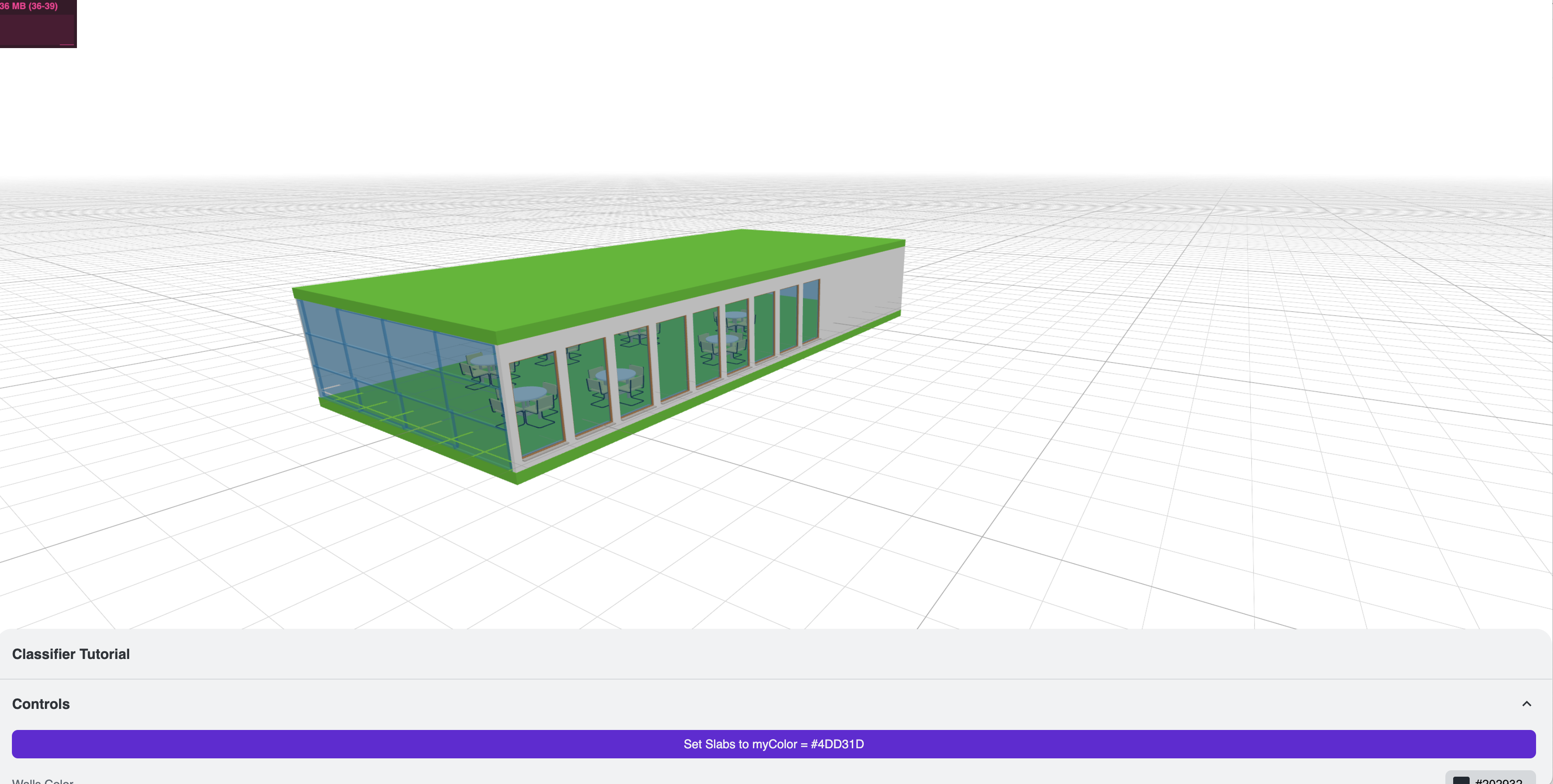

Same as a preset with a button added to the UI Same as a preset with a button added to the UI

The Project information panel in /src/components/Panels/ProjectInformation.tsuses the same capabilities as in /src/tutorials/main-ifc-relations-tree.ts. Namely, the relationsTree available in

/@thatopen/ui-obc/dist/components/tables/RelationsTree/index.d.ts
/@thatopen/ui-obc/dist/components/tables/RelationsTree/src/template.d.ts

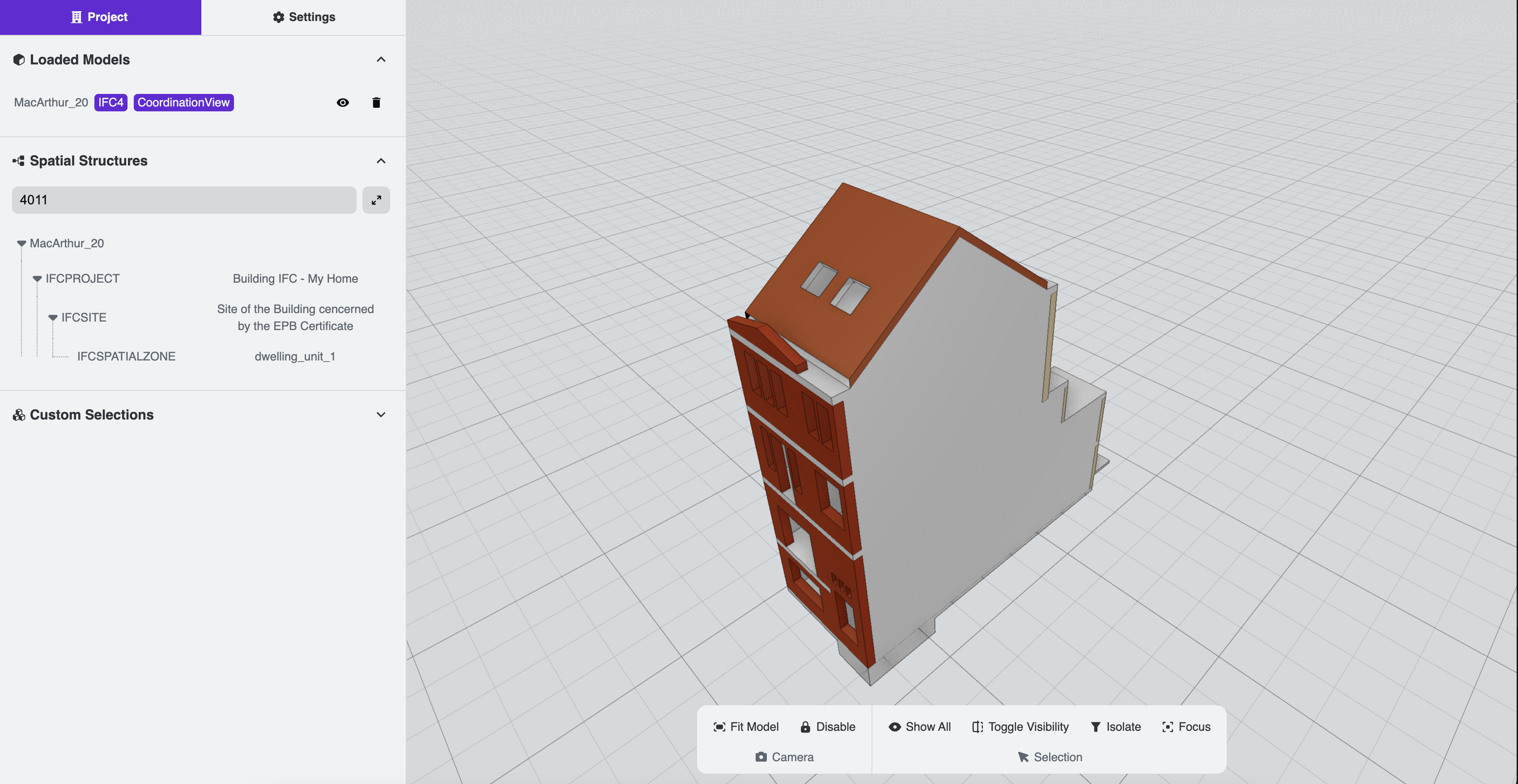

A search base on the expressID or the name provide the structure: Project (panel) > Spatial Structure > 4011 or name Project (panel) > Spatial Structure > 4011

The search on spatial structure works only for 'spatial' elements (e.g., IfcSpatialZone 4011 & 4013 and IfcBuildingStorey 1700 or 2224).

Search on walls, ... are handled differently looking for 'entities' and not implemented there.

Observed behavior in tutorials/main-ifc-relations-tree.ts:

When a selection (click) is made in the left panel (at a specific level of the tree), the selection is highlighted in the scene

the selection is highlighted in the scene

Use the hider

The hider with the version v2.1.0 in /src/tutorials/main-ifc-hider.ts works ok with all the small.xxx files, but not with the file relations-index-all.json derived from MacArthur_20.ifc. However when using the indexer straight on (without restoring the indexer from the json), the hider works.

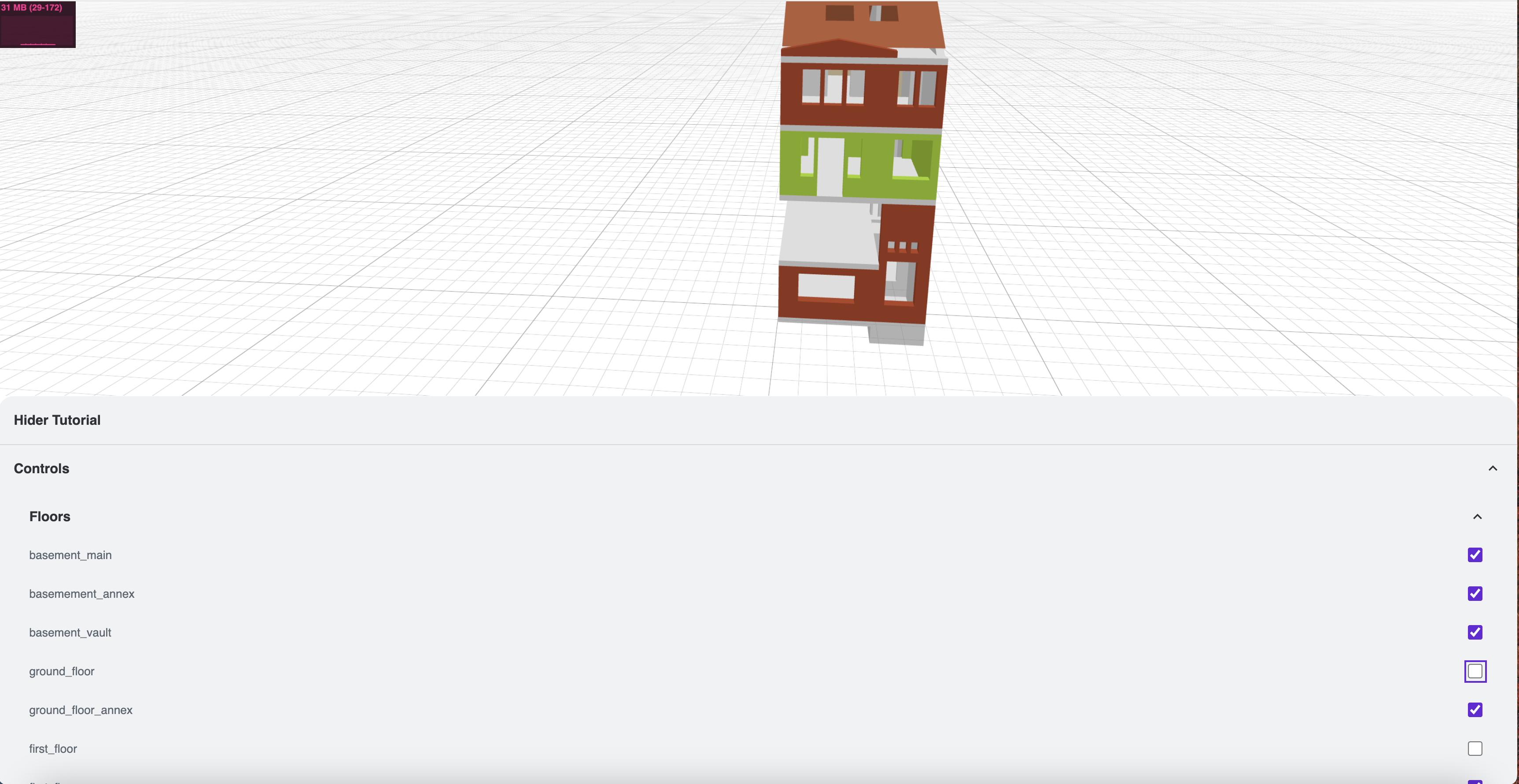

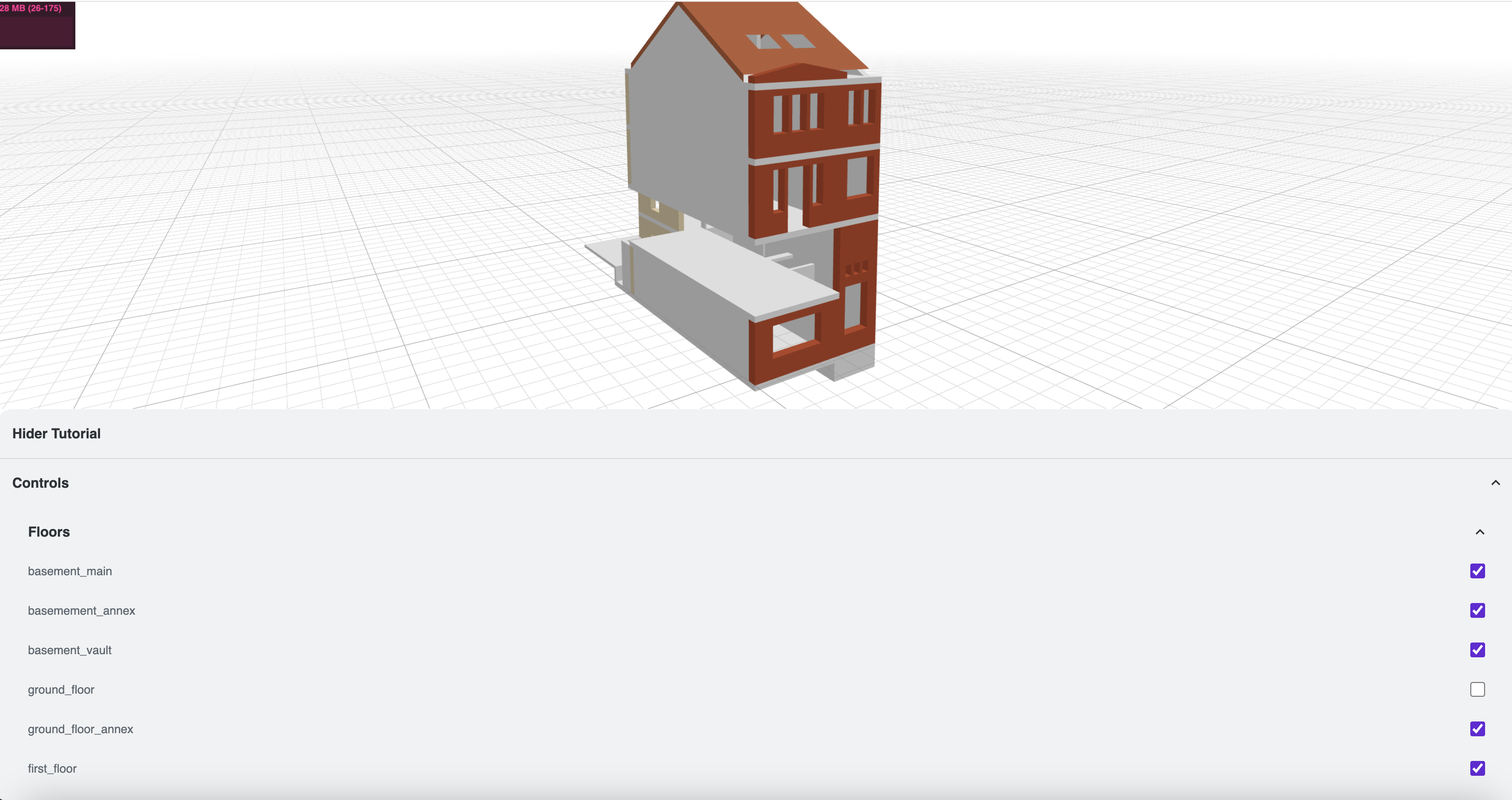

Hider at work Hider at work

Actually, the hider also works with the main.ts and main-axo.ts with isolate in the toolbar and the code in /src/components/Toolbars/Sections/Selection.ts. But there is uses the selection made by the user click and available in highlighter.selection.select.

WARNING! I have used the /src/tutorials/main-ifc-hider.ts to set up the highlighter.highlightByID For all storeys the hider works as a 'hider' while for first_floor it works as a highlighter !!!

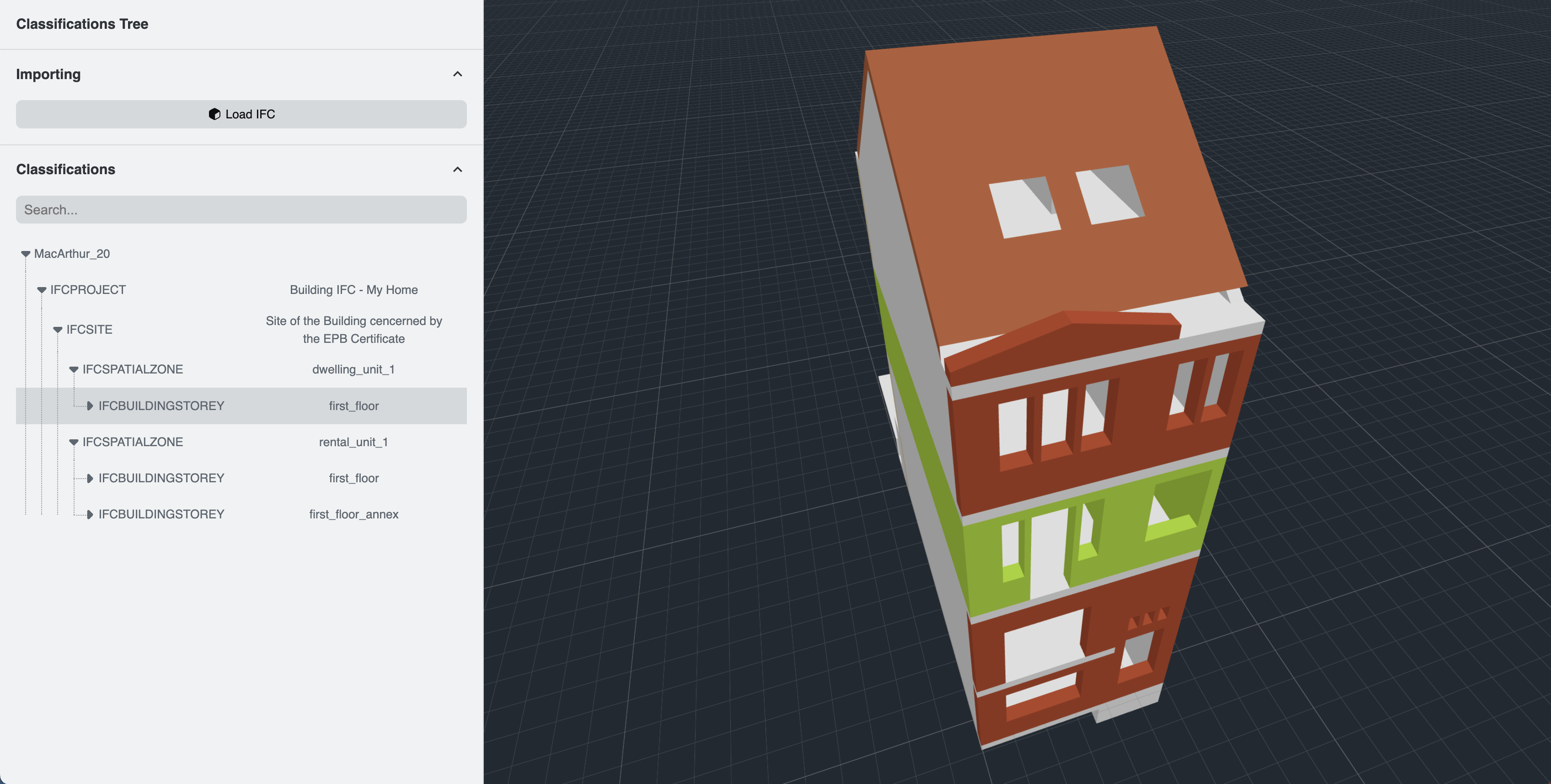

Highlighter for 'first_floor and Hider for the others' Highlighter for 'first_floor and Hider for the others'

Use the exploder

Source in /src/tutorials/main-ifc-exploderrelations-tree-2.ts

Does not work with MacArthur_20.ifc, although no error message. To be investigated.

Use the floor plan maker and viewer

Source in /src/tutorials/main-front-floorplanqs.ts

Only shows one plan for MacArthur_20.ifc (for all storeys). To be investigated.

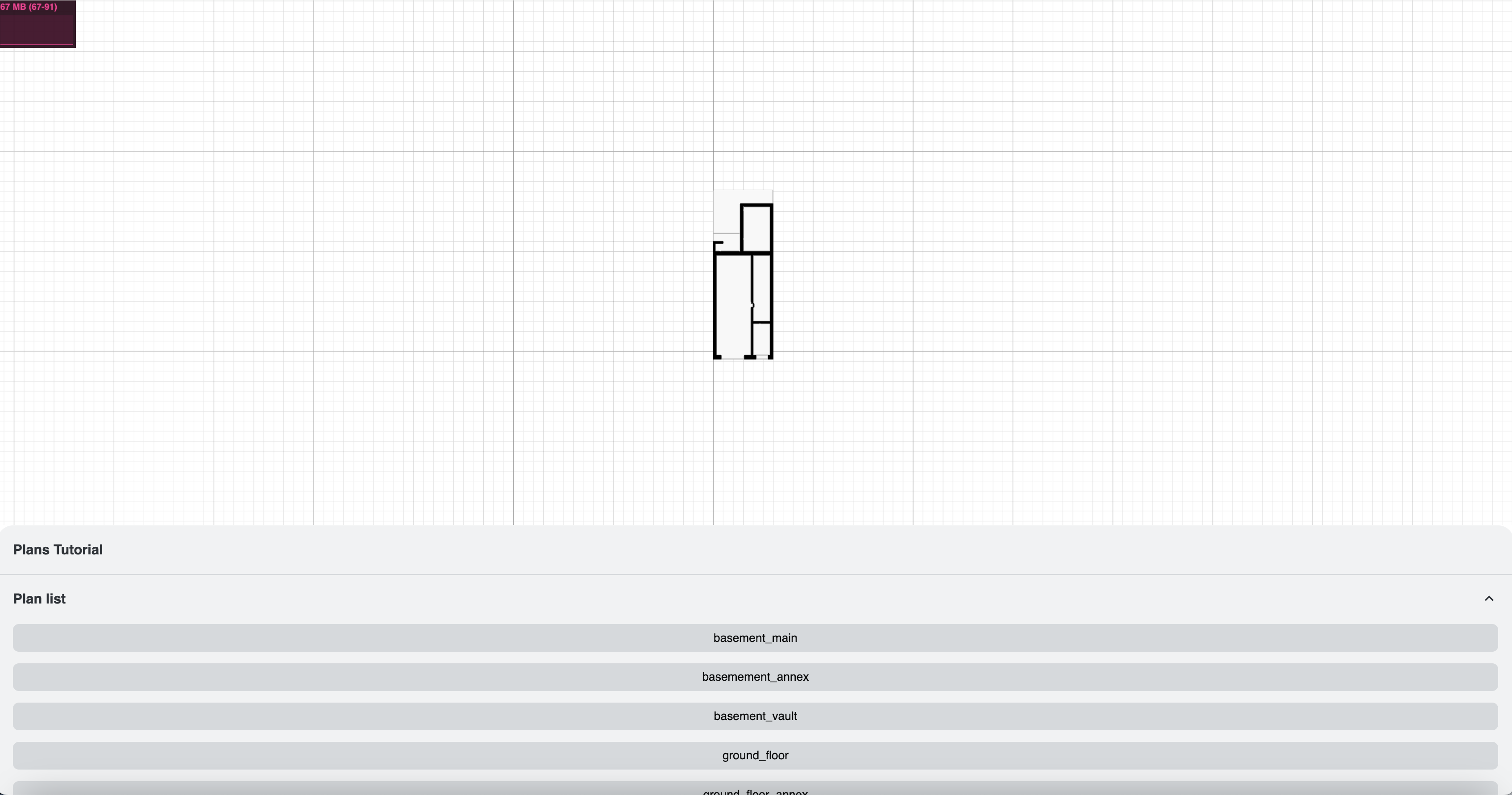

Floorplans at work Floorplans at work

Make and Highlight a Selection without a User Action

The selection would be limited to aggregates such as a

  • IfcSpatialZone
  • IfcSpace
  • IfcZone
  • IfcBuildingStorey
  • IfcBuilding

I started this in /src/tutorials/main-ifc-relations-tree-2.ts but I could not get anywhere with the version available on July 7th (in that-open-2)!

With the version v2.1.0 it is way better!

The the highlighter is a front end components and apparently rendering of the base components needs to be done before one can use the highlighter. So I have put the code in a function showPredefinedSelection and used a setTimeout(showPredefinedSelection,200) to get a display instead of a black screen!

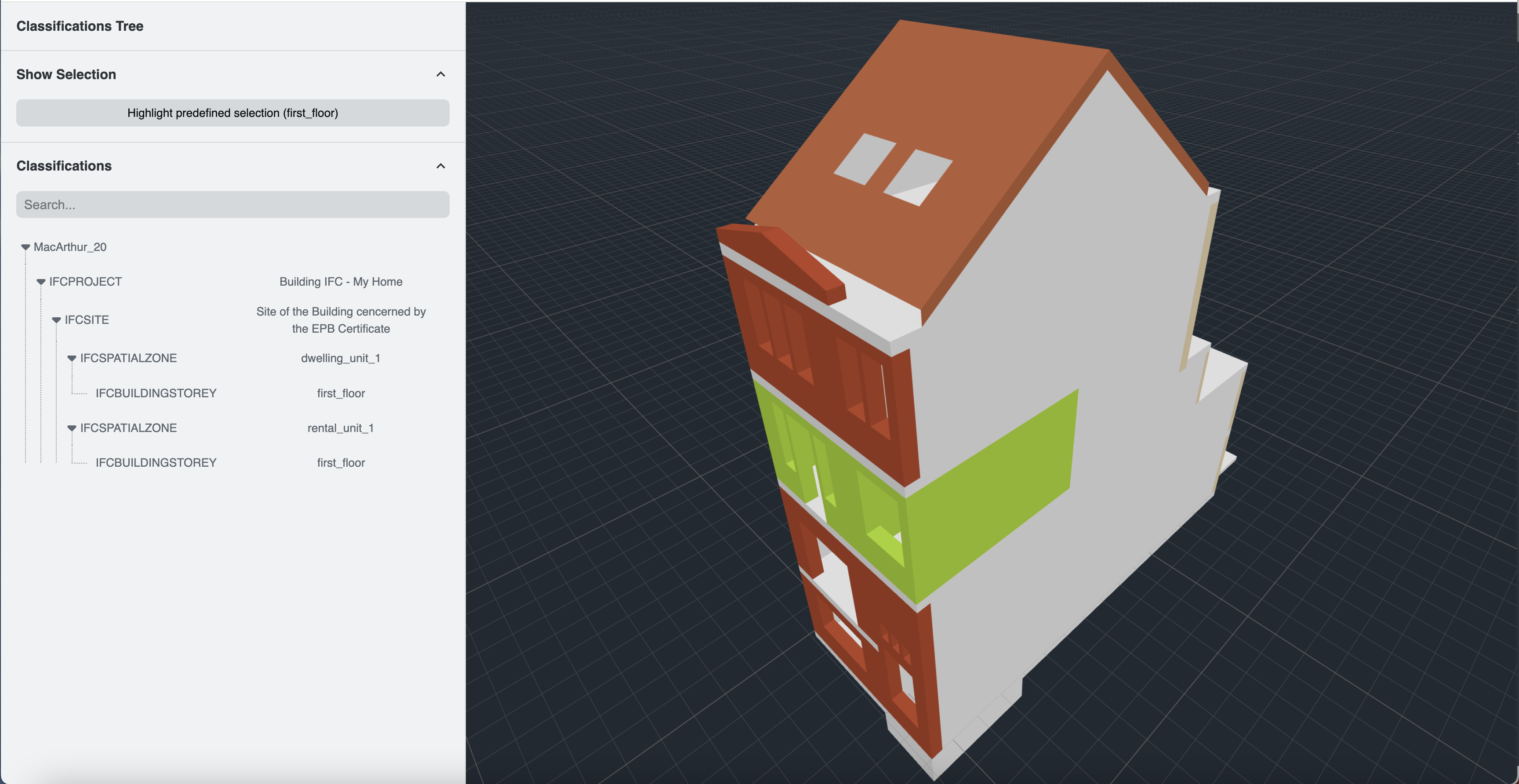

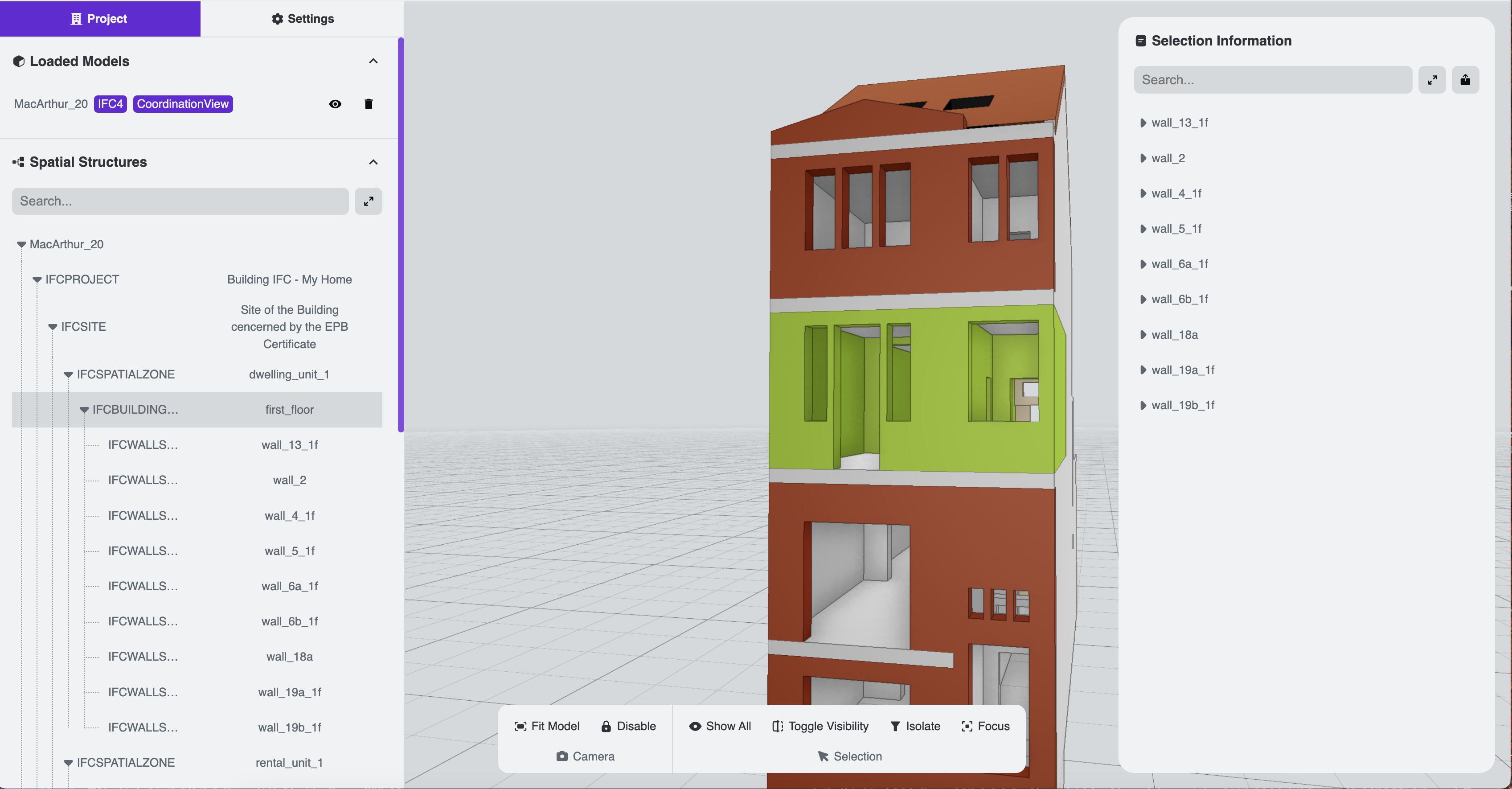

Predefined Highlight on 'first_floor' and relationsTree set to the corresponding floor Predefined Highlight on 'first_floor' and relationsTree set to the corresponding floor

  • The relationsTree is visible on the left panel, with the structure related to the 'first_foor'
  • The button Highlight predefined selection (first_floor) makes it possible to get the the initial highlight after another selection has been made with the mouse
  • The highlight is visible on the main viewport

Integration in main-axo.ts script

  1. To start with, I use the query string to pass the parameters that drive the behavior (e.g, ifcFileURL query parameter)
  2. Then, I use the value of parameters in the code which I changed to integrates the capabilities surfaced in the tutorial changes
  3. The capabilities are showcased in this server

Dev and Build

To start in dev: npm run dev

To build: npm run build gives errors (from the ThatOpen Code) and 'npm run build --force gives the same result as npm run build

Build a container

Create a Dockerfile

FROM node:23-alpine
WORKDIR /app
COPY package.json package-lock.json ./
RUN npm install
COPY . .
EXPOSE 5173/tcp
CMD ["npm", "run", "dev"]

Build the container with docker

docker build -t thatopen-v2-1-0 .

Tag the image

docker tag thatopen-v2-1-0 lvanlier/thatopen-v2-1-0

Create a repo on Docker Hub

login to Docker Hub, create the repo with name thatopen-v2-1-0

Push the image to the repo

docker push lvanlier/thatopen-v2-1-0

Run with the image from Docker Hub

docker run -d --network host lvanlier/thatopen-v2-1-0
